상세 정보 |
|||
| 프레임 크기: | 주문 제작된 1100×620×1300mm 이용할 수 있는 | 패널 폭: | 350 mm/46 0 mm/530m m/630mm |
|---|---|---|---|
| 슬롯 너비: | 5mm | 슬롯 깊이: | 4mm |
| 슬롯 피치: | 10mm | 능력은 아니오 배열합니다./row: | 100개 |
| 판레 Num: | 2 양측 사이드, 2 싱겔 옆 또는 당신의 요청된 것 부합시키는 것 | Adj. 방법: | 조정할 수 있는 핸들 |
| 강조하다: | ESD storage racks with PCB trolley,Fixed ESD pressure plugs,ESD storage racks 100 slot capacity |
||
제품 설명

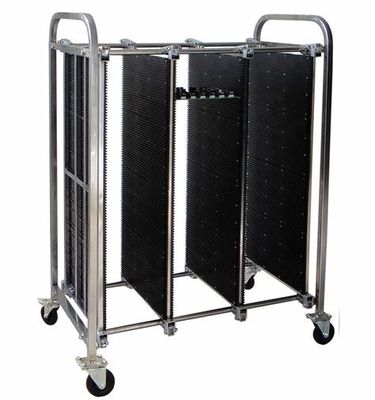

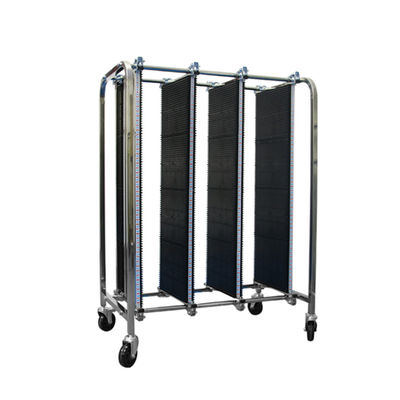

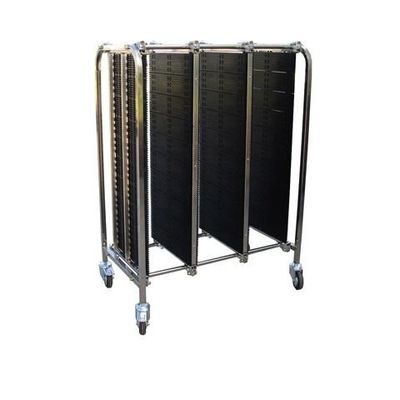

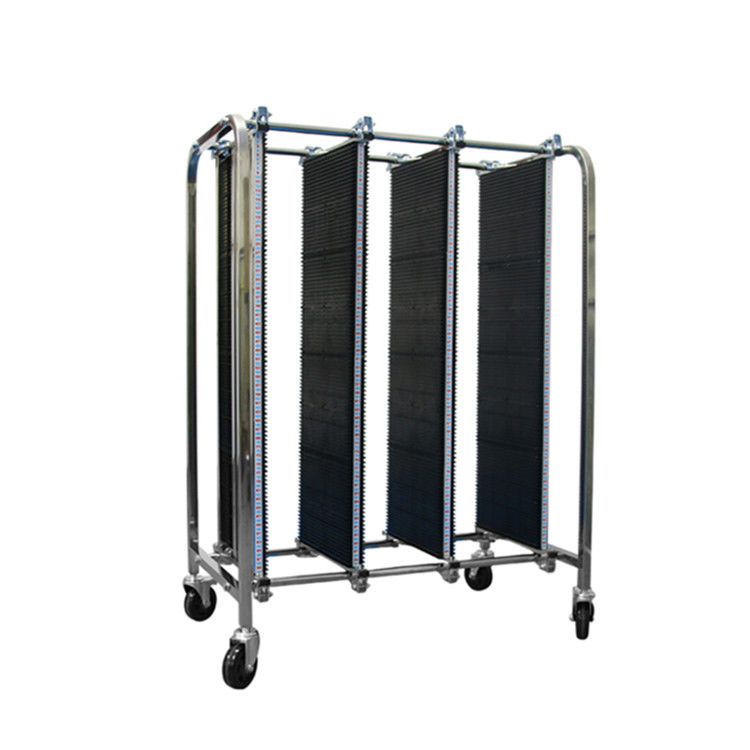

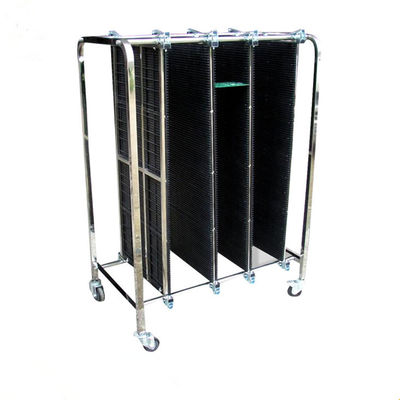

HZ-27103B Customizable Antistatic PCB Storage Circulation Movable Cart Trolley
Detailed description
HZ-27103B ESD PCB Trolley 110*620*1300
-
Anti-static measures: conductive castor and conductive chain;
-
Pressure plugs Design: Each anti-static board is fixed by four pressure plugs;
-
Four wheels design: two wheels are directional brake wheels and two universal wheels;
-
Anti-static board: anti-static board is outstanding in resistance of chemical solvents and impact;
-
Super storage: Each turnover car can store 100 to 500 pcs PCB. The number of storage PCB is relied on the thickness of PCB.
| Model | Size(mm) | Flashboard Width | Slot width | Depth | Pitch | Slot NO./row | Side plate structure | Adj. method |
| HZ-27103A | 950×620×1300 | 350mm/46 0mm/530m m/630mm |
5mm | 4mm | 10mm | 100 | 4pcs panel joined | Handle adjustable |
| HZ-27103B | 1100×620×1300 | |||||||
| HZ-27104A | 900×675×1300 | 515mm | 5mm | 5mm | 19mm | 60/120 | One whole piece side plate | Handle adjustable |
| HZ-27104B | 900×450×1300 | 280/350m m |
5mm | 5mm | 19mm | 50/100 | ||
|
Remark:HZ-27603 this model trolley material is plastic,HZ-27604 this model trolley material is stainless steel , all items Volume resistance: 106-109Ω, Any size can be customized according to customer request. adding double
|
||||||||
