상세 정보 |
|||
| 재료: | PP 플라스틱 | 크기: | 400x300x230mm |
|---|---|---|---|
| 수라페이스 저항: | 10e4-10e6 온텀 10e6-10e9 오옴 | 색상: | 검은색 |
| 어플리케이션: | 저장에 전자적 구성요소 | 패키지: | 정상적으로 영화에 의해 또는 영화와 팔레트에 의해 |
| MOQ: | 100pcs | 생산 시간: | 3-5 영업일 |
| 씌우다: | 있을 수 있었고 가지고 있고 사이즈를 커버합니다 : 600*400mm | 이름: | ESD 스토리지 박스 |
제품 설명

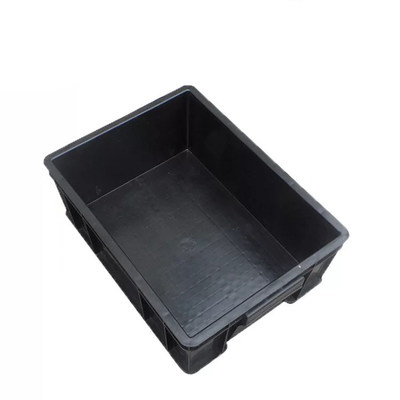

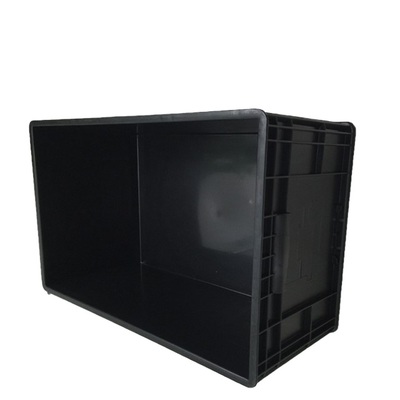

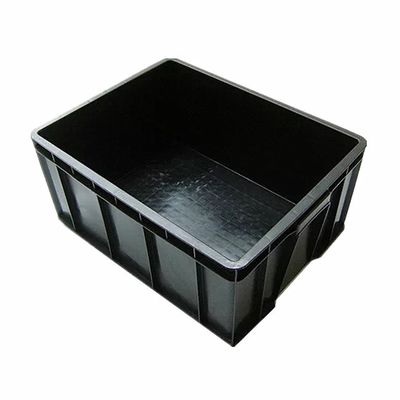

Durable ESD PP Injection box For Industry
Professional protection for electrostatic-sensitive components (ESDs) in industrial storage, transportation, and handling scenarios.
Permanent Antistatic Protection
Crafted from high-quality antistatic plastic, the container integrates permanent electrostatic dissipation technology—no fading of protective performance over time. It eliminates the risk of static discharge damaging valuable electronics, circuit boards, semiconductors, or precision parts, ensuring component safety at every stage.
Complies with key industry standards:
- IEC 61340-5-1
- ANSI/ESD S20.20
Conductive material allows the charge to move very fast and has a low resistance.
Static dissipative material allows the charge to move quickly but slower than conductive material.
An insulative product has no movement or a very high resistance.
If parts are sensitive to electrical charges they should be stored in a conductive container.
Other different sizes; Notes:* Lid cover optional
| Model | Ext.dim.mm (L×W×H) | Int.dim.mm (L×W×H) | Model | Ext.dim.mm (L×W×H) | Int.dim.mm (L×W×H) | ||
| *HZ-26132 | 615x430x320 | 580x395x310 | *HZ-24928 | 495x370x285 | 465x345x275 | ||
| *HZ-26125 | 615x430x250 | 580x395x245 | *HZ-24922 | 495x370x230 | 465x345x220 | ||
| *HZ-26120 | 615x430x200 | 580x395x195 | *HZ-24916 | 495x370x165 | 465x345x160 | ||
| *HZ-26115 | 615x430x150 | 580x395x145 | *HZ-24912 | 495x370x125 | 465x345x120 | ||
| *HZ-26540 | 600x500x400 | 560x460x390 | *HZ-24328 | 400x300x280 | 365x265x275 | ||
| *HZ-26535 | 600x500x355 | 560x460x350 | *HZ-24323 | 400x300x230 | 365x265x220 | ||
| *HZ-26530 | 600x500x305 | 560x460x300 | *HZ-24317 | 400x300x170 | 365x265x165 | ||
| *HZ-26525 | 600x500x255 | 560x460x250 | *HZ-24315 | 400x300x148 | 365x265x135 | ||
| *HZ-26516 | 600x500x160 | 560x460x155 | *HZ-24312 | 400x300x120 | 365x265x115 | ||
| *HZ-26434 | 600x400x340 | 565x365x330 | HZ-23215 | 300x200x148 | 265x165x135 | ||
| *HZ-26428 | 600x400x280 | 565x365x270 | HZ-23212 | 300x200x120 | 265x165x115 | ||
| *HZ-26423 | 600x400x230 | 565x365x220 | HZ-26941 | 690x485x410 | 650x450x400 | ||
| *HZ-26417 | 600x400x170 | 565x365x160 | HZ-27418 | 700x450x180 | 665x415x170 | ||
| *HZ-26415 | 600x400x148 | 565x365x137 | HZ-26544 | 650x440x350 | 610x400x340 | ||
| *HZ-26412 | 600x400x120 | 565x365x110 | HZ-26640 | 660x400x165 | 620x365x160 | ||
| *HZ-25438 | 545x425x380 | 510x390x370 | HZ-25426 | 540x415x260 | 500x380x250 | ||
| *HZ-25430 | 545x425x305 | 510x390x300 | HZ-22107 | 480x350x175 | 440x320x165 | ||
| *HZ-25424 | 545x425x240 | 510x390x230 | HZ-24215 | 420x310x150 | 380x280x145 | ||
| *HZ-25415 | 545x425x150 | 510x390x145 | HZ-23613 | 360x270x135 | 320x240x125 | ||
| HZ-25030 | 500x310x300 | 465x270x290 | HZ-24822 | 480x355x220 | 445x318x210 | ||
| HZ-22150 | 510*345*185 | 464*300*175 | HZ-24832 | 480x355x320 | 445x318x310 | ||
| HZ-22132 | 720x560x380 | 680x515x370 | HZ-22136 | 560x430x145 | 515x350x140 | ||
| *HZ-22127 | 580x368x200 | 535x345x195 | HZ-22137 | 585x405x175 | 538x360x170 | ||
| *HZ-22128 | 580x368x165 | 535x345x155 | HZ-22138 | 530x370x205 | 490x330x200 | ||
| Model | Size(mm) | Model | Size(mm) | Model | Size(mm) | ||
| HZ-24635 | 465×350×15 | HZ-26050 | 600×500×15 | HZ-25139 | 510×390×15 | ||
| HZ-25839 | 580×390×15 | HZ-26040 | 600×400×15 | HZ-25439 | 540×390×15 | ||
| HZ-24030 | 400×300×10 | ESD Box Lids’ Sizes | |||||
Versatile Applications:
Ideal for any workspace requiring strict static control:
- Electronic assembly lines
- Laboratory testing environments
- Logistics & shipping (protects components during transit)
- Manufacturing facilities (semiconductors, precision instruments)
Durable, reusable, and easy to clean—reduces waste and lowers long-term storage costs.
